PROTO-Zseries

Compact rotary lower reel flow wrapping machine with high speed

Z3-P_640x368

▼Descriptions of each icon are displayed when you place your cursor over each icon.

  • Sanitary
  • Memory 100
  • Film tension adjustable handle
  • Compact
  • Full color touch panel
  • AC servo motor 2
  • End sealer Rotary

FEATURES

Easy maintenance and cleaning
Maintenance of the end sealer can be performed easily by lowering the out-feed conveyor, which keeps them clean at all times.
Flat belt conveyor as option (Z4)
Detachable and washable flat belt is equipped as standard, which keep excellent sanitation. In addition, we offer you with a wide variety of conveyor options to meet your demand.

PRODUCT APPLICATION

  • Japanese confectionery
  • Western confectionery
  • Industrial items

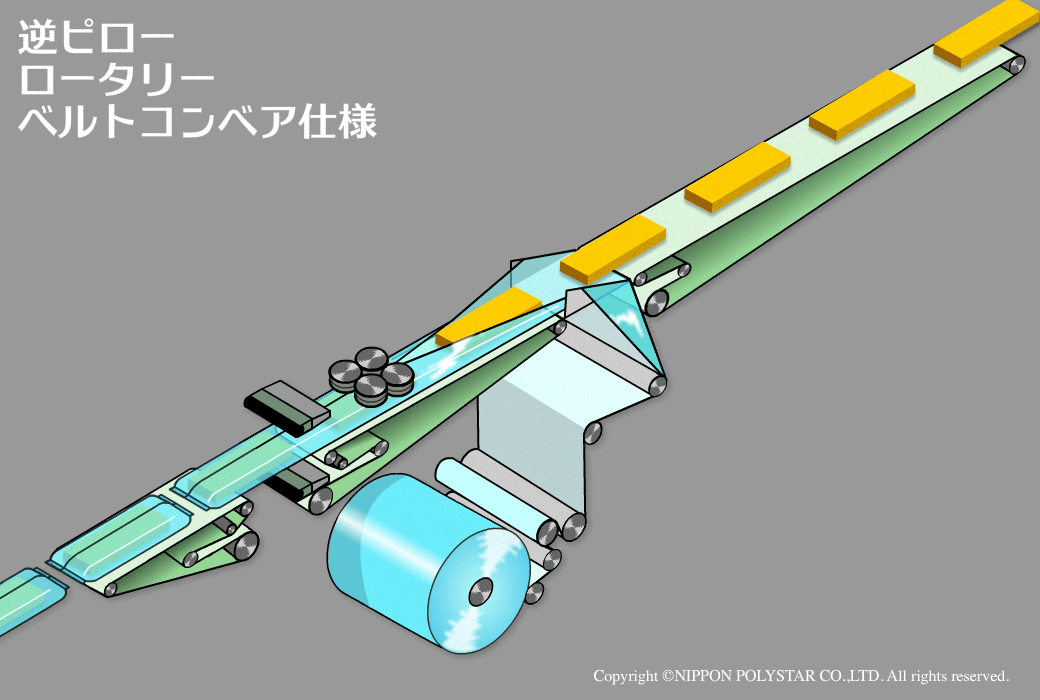

*The above animation is for illustrative purposes only. The animation’s motion is different from the actual motion.
* The above descriptions are just examples of the items which have been wrapped by our lower reel flow wrapping machines. As we can customize the machine to meet your demand, please do not hesitate to contact us.

OPTIONS

*”PACS” and “PAMS” are patented.

SPECIFICATIONS

Dimensions L:1635　W:687　H:1300（mm）
Wrapping speed 10〜60RPM
Max. film feed speed 30（m/min）
Max. film width 400（mm）
Max. film dia. 300（mm）
Max item height 60（mm）
Max item width 180（mm）
Film cut length 80〜500（mm）
Power consumption 3 phase 2.7 (KVA)
Machine weight 320（Kg）

＊These descriptions may vary depending on the shape, dimensions and ingredients of the wrapping items, and the properties of using films. Please note that specifications may be changed without prior notice.
