PAW-6000B

Latest vegetable wrapping machine with computer

PAW-6000B_640x368

Descriptions of each icon are displayed when overlayered the icon

  • Item Parameters 100
  • Film tension handle
  • M-heater
  • Full-color touch panel
  • AC Servo 2
  • Film roll centering
  • End sealer Box-motion

Features

Efficient by computer controll
High speed wrapping for leafy and long vegetales. As saving 100 kinds of various vegetables as Item Memo is available, calling up recorede adta easily and enables operators to switch each item data smoothly.
It includes Stainless steel conveyor with side belt as standatrd type in in-feed portion.
All you have to do is putting vegetbales on th conveyor with side belst. Once items are put on it, they are provided to the machien and no empty bags are discharged.
Printer is available (Option)
Making it possible to print producer’s name and numbers.

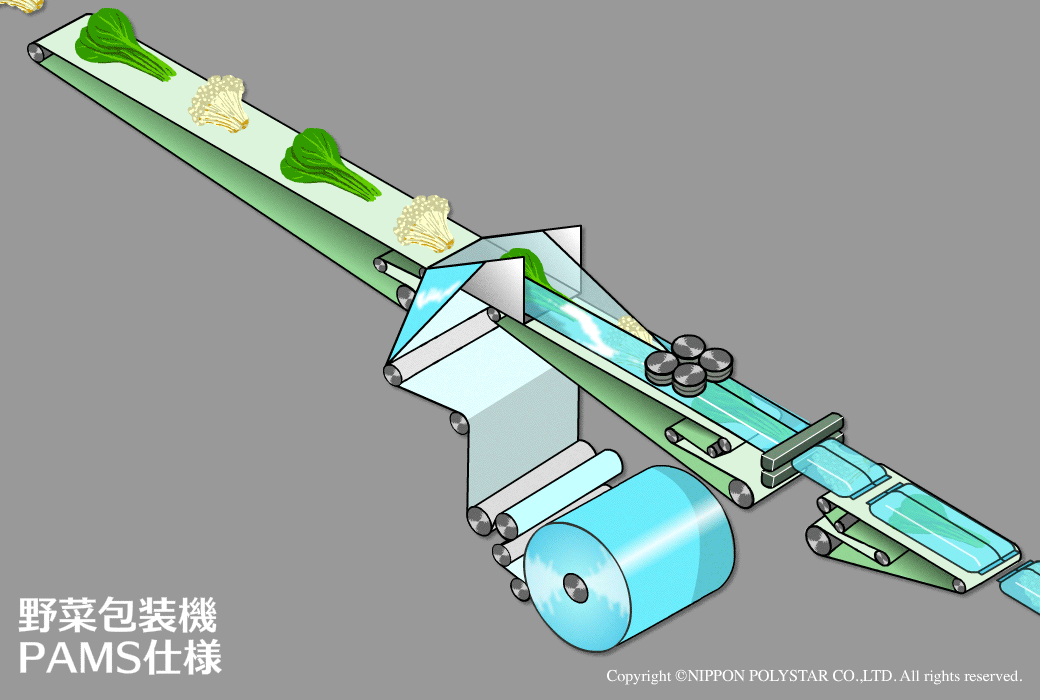

PAMS (Option)
PAMS is wrapping system which claculates optilmal bag length depending on item length, and seals and cut bag automatically.

Several examples of wrapping items

  • Long vegetbles
  • Short vegetables
  • Leafy vegetables
  • For vegetables plant
  • Chinese cabbage
  • Cabbage
  • Welsh onion
  • Leek
  • Burdock
samlpe_paw5000

*The above descriptions are just examples of the commodity which has really been packed by our machines. As we strive to meet your demand, please do not hesitate to contact us.

OPTIONS

[PACS] and [PAMS] are patented.

Specifications

Dimensions L:4259 W:970 H:1517(mm)
Wrapping speed 10-60(pcs/min)
Max. film speed 26(m/min)
Max. film width 550(mm)
Max. film dia. 300(mm)
Max. item size (H) 120(mm)
Max. item width (W) 180(mm)
Film cut length 200?900(mm)
Power consumption Three-phase 4.4
Weight 800(Kg)
Air consumption 0.5(Mpa) 60 L/min (ANR)

* This specifications may vary depending on shapes, dimensions, materials and properties of using film. Please note that they may be changed without notice.
