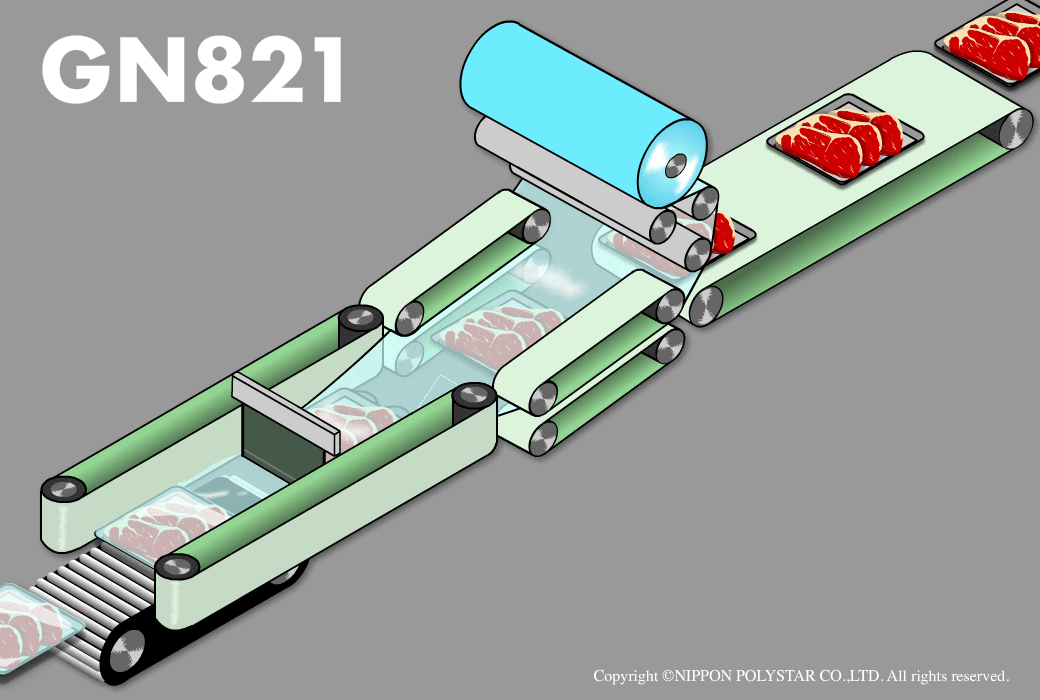

GN-821

Stretch Wrapping Machine

GN-821_640x368

Descriptions of each icon are displayed when overlayered the icon

  • Item Parameters 100
  • Full-color touch panel
  • AC Servo 2
  • Film roll centering
  • Sanitary

Features

Efficient by computer control
As saving 100 kinds of various vegetables as Item Memo is available, calling up recorded data easily and enables operators to switch each item data smoothly.
AC Servo Motors are Equipped
Each drive unit is individually equipped with an AC servo motor.
Color Touch Panel
TFT color touch panel (5.7 inches) provides operation on clear are easy to read display. In addition, icon-based graphical display allow for easy to use operation even for beginners.
Belt type Automatic in-feed device
Trays are conveyed to the machine in the right timing when only putting then on the conveyor randomly. The conveyor belt is easy detachable and washable.
Self-diagnosis Function
Display shows the malfunction information when a failure occurs.
PAMS (Option)
PAMS is wrapping system which calculates optimal bag length depending on item length, and seals and cut bag automatically.

Several examples of wrapping items

  • Frozen chicken in tray
  • Frozen shrimp in tray
  • Items in tray
  • Vegetables in tray
GN-821-2

*The above descriptions are just examples of the commodity which has really been packed by our machines. As we strive to meet your demand, please do not hesitate to contact us.

OPTIONS

  • ・Polystar Auto Measure System [PAMS]
  • Various auto feeders
  • Auto adjustor
  • Heater in out-feed conveyor
  • Misposition; stop system
  • Conveyor mode
  • Shrink specifications
  • Multilingual display (Japanese・English・Chinese・Korean)

*[PAMS] are patented.

Specifications

Dimensions L:3000 W:885 H:1235(mm)
Wrapping speed 20-60(pcs/min)
Tray size (W) 80-210(mm)
Tray size (L) 150-400(mm)
Tray size (H) 15-60(mm)
Power consumption Three-phase 2.7

*This specifications may vary depending on shapes, dimensions, materials and properties of using film. Please note that they may be changed without notice.
